Description

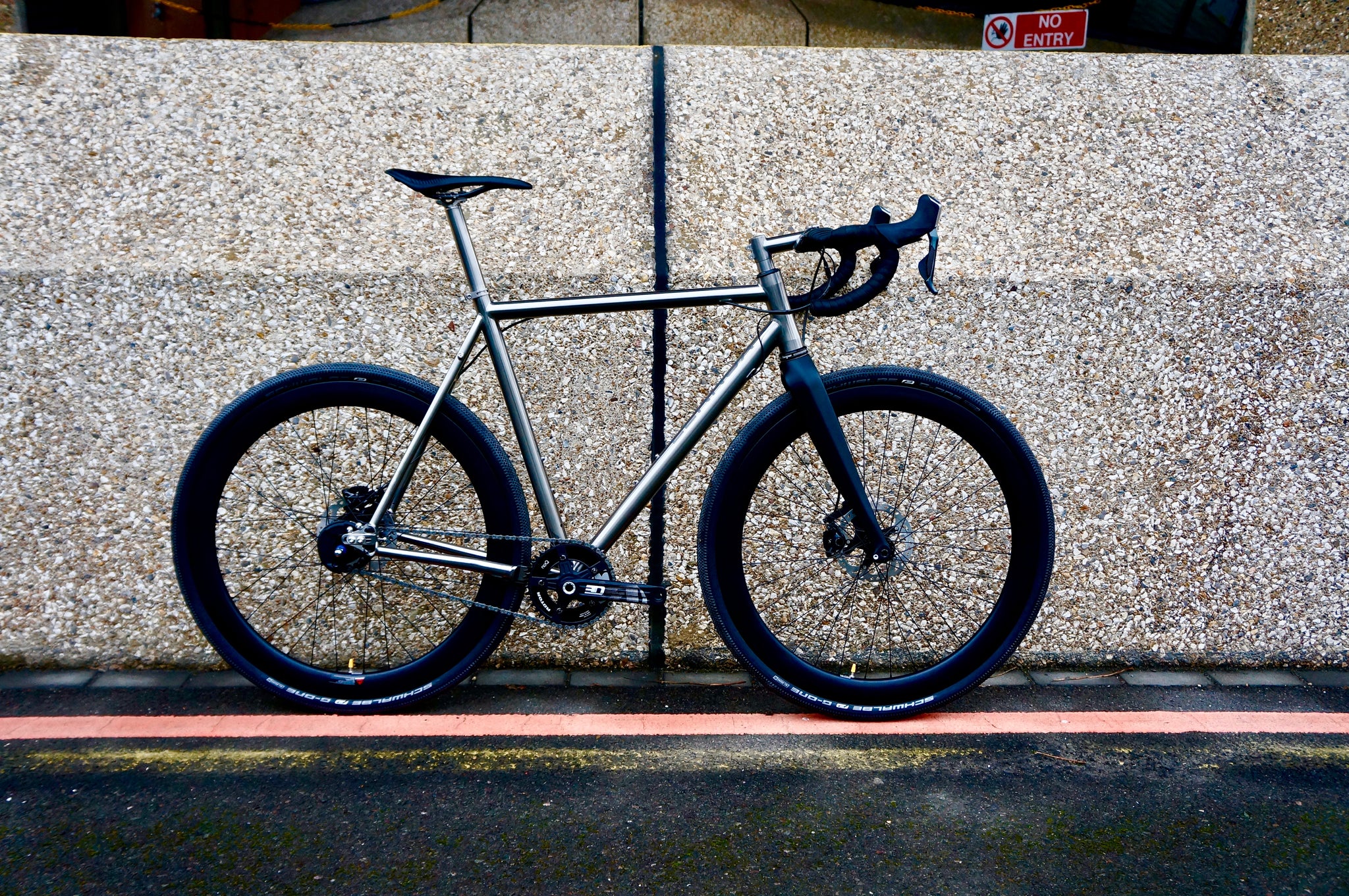

urban bike alfine 11 gates The Daily GrindA versatile, go anywhere, do anything titanium gravel (and tarmac!) grinder. We've packed this frame set with the latest features to offer a multitude of build configurations, so you really can build the bike you need The Urban is inspired by over a decade of pounding the streets of London on the daily commute. We wanted to build a bulletproof low maintenance bike that would take anything a British winter could throw at it. For ultimate in low
A versatile, go anywhere, do anything titanium gravel (and tarmac!) grinder.
We've packed this frame set with the latest features to offer a multitude of build configurations, so you really can build the bike you need
The Urban is inspired by over a decade of pounding the streets of London on the daily commute. We wanted to build a bulletproof low maintenance bike that would take anything a British winter could throw at it.
For ultimate in low maintenance clean riding, The Daily Grind features an invisible frame split that allow the fitting of a Gates Carbon Belt Drive.
Designed with the Shimano Alfine 8/11 speed hub gear in mind, it also supports running a traditional derailleur setup front and rear should you wish to.
Available with your choice of standard finishing options or custom spec defined by you, contact us to discuss your individual requirements and we can adjust the build price accordingly.
Our frames are backed by a 5 year warranty and a generous crash replacement discount
Standard specification
- 3AL/2.5V handmade titanium disc frame
- Internal cable and brake hose routing
- Di2 ready
- mudguard and rack mountings
- 700c X 42mm tyre clearance front and rear
- Headset - Hope Pick n Mix
- Fork - LCC Carbon Gravel Fork 12 X 100mm thru-axle with mudguard mounting and internal hose routing.
- 44mm Head tube for use with tapered fork
- Rocker rear dropouts with 135mm spacing or 12 X 142mm thru-axle
- Gates Carbon Belt Drive compatible
- Bottom bracket - T47 threaded
-
Wheelset - Handbuilt with DT Swiss spokes - DTSwiss 350s front hub, choose from aluminium or carbon rims
- Rear hub - Choose from a range of Shimano Alfine internal hub gear options
-
Chainset - Choose from chain drive of Gates Carbon Belt Drive
-
Brakes - TRP Hylex hydraulic disc brakes - with TRP Di2 button mode for Di2 (Drop bars) Shimano Deore for flat bars
Geometry
| Size | 52cm | 54cm | 56cm | 58cm |
| Top tube (effective mm) | 525 | 545 | 560 | 575 |
| Seat tube (centre to centre mm) | 503 | 533 | 544 | 549 |
| Head tube (mm) | 120 | 140 | 150 | 160 |
| Seat tube angle (deg) | 73.5 | 73 | 73 | 73 |
| Head tube angle (deg) | 71.2 | 71.3 | 72 | 72 |
| Front centre (mm) | 580 | 595 | 599 | 614 |
| Chain stay length (mm) | 430 | 430 | 432 | 435 |
| BB drop (mm) | 75 | 75 | 73 | 70 |
| Reach (mm) | 357 | 366 | 378 | 391 |
|
Stack (mm) |
561 | 582 | 593 | 599 |
